R for Bioinformatics: Population Genetics Foundations

hpc
r
bioinformatics
github
popgen
allele frequencies, heterozygosity, and a first genotype–environment association
Author

Anoob Prakash

Published

September 11, 2026

PART I

Goal

Apply the R skills from Module 1 to population-genetics concepts: allele frequency, heterozygosity, genetic diversity, and a first genotype/phenotype–environment association (GEA), using the genetic-parameter columns already present in the red-spruce dataset (PC1, PC2, Family_Homozygosity, Population_Homozygosity, Genetic_Diversity, Genetic_Load).

We don’t have a raw genotype (VCF) file for this dataset, so this module teaches the underlying math with a small simulated SNP matrix, then applies the same reasoning to the real, pre-computed genetic-parameter columns already in your data.

Prerequisites

1. Data required data from github

Download the raw GitHub file directly into data/raw/

Copy the code below and run it inside the cluster-exercise directory

dir.create("data/raw", recursive = TRUE, showWarnings = FALSE)
download.file(
"https://raw.githubusercontent.com/anoobvinu07/Genomic_assisted_selection/master/data/FitnessTraits_GeneticParameters_RedSpruce.txt",
      destfile = "data/raw/red_spruce_fitness_traits.txt")

The -L flag tells curl to follow redirects, and -o specifies the local output file. Verify the download before doing any analysis:

Recreate the rest of the project layout if you don’t already have it:

dir.create("results", showWarnings = FALSE)
dir.create("src", showWarnings = FALSE)

This excercise assumes the project folder follows the following structure:

cluster-exercise/
 ├── data/
 │   └── raw/       # downloaded, unchanged source data
 ├── logs/          # Slurm standard output and error logs
 ├── results/       # analysis products created by R
 └── src/           # R and Slurm scripts

2. Install the packages used here:

  install.packages(c("vegan"))
  # Optional, for working with real genotype/VCF files beyond this module:
  # install.packages("BiocManager")
  # BiocManager::install(c("vcfR", "adegenet"))

Learning objectives

By the end of this module you should be able to:

  • Explain what allele frequency, observed heterozygosity, and expected heterozygosity mean
  • Represent genotypes as a simple numeric matrix (0/1/2 coding) and compute allele frequencies from it
  • Compute observed vs. expected (Hardy-Weinberg) heterozygosity per locus and interpret the difference

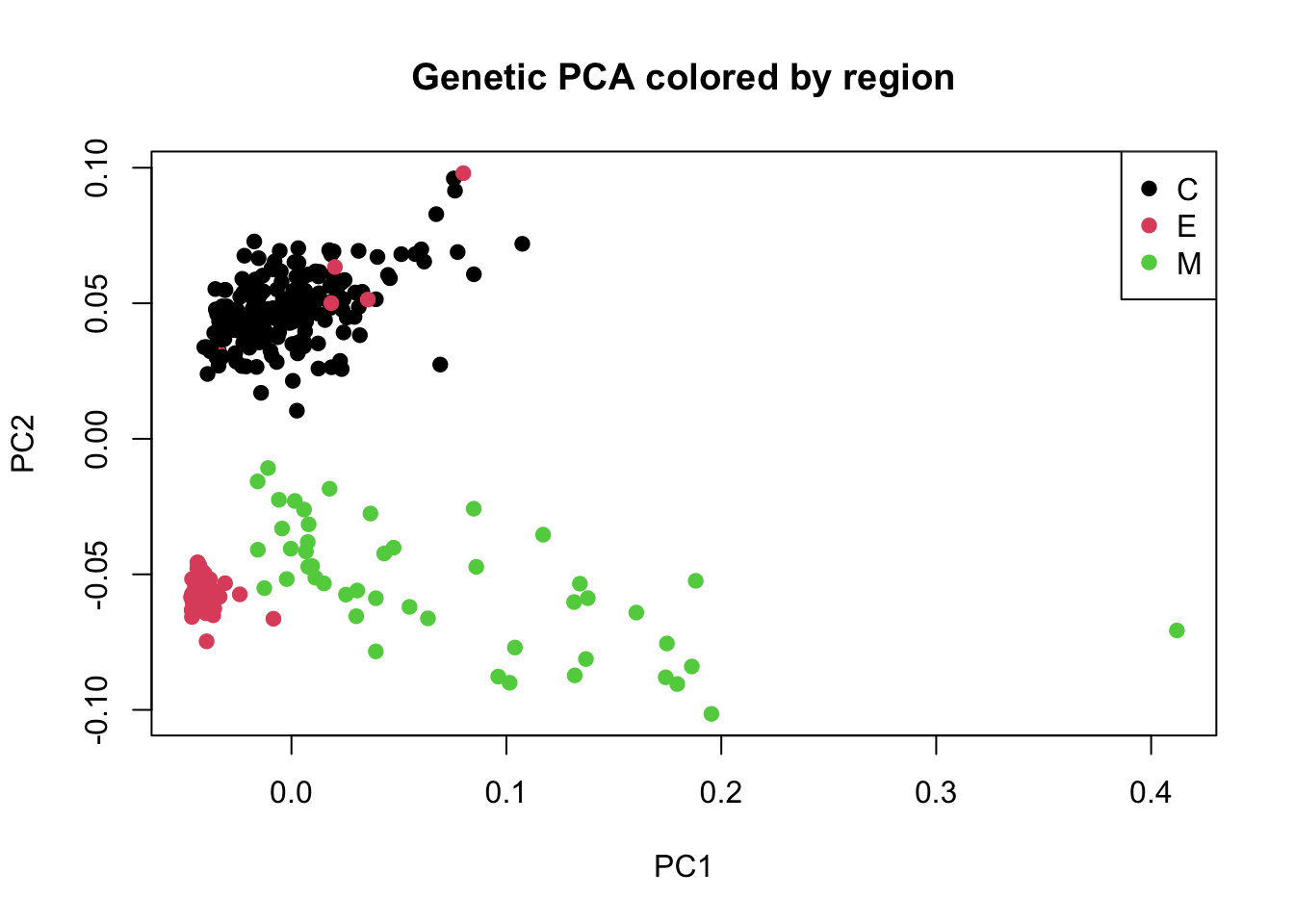

  • Run a PCA on genetic markers with prcomp() and interpret PC1/PC2 in a population-genetics context
  • Test a simple genotype/phenotype–environment association using correlation and linear models
  • Recognize the step from a simple correlation to a multivariate method (RDA) used in real genotype-environment association work
  • Know when to move from a plain R matrix to dedicated packages (vcfR, adegenet) for real VCF-scale data

R for bioinformatics quick reference

Function/package Purpose Example
matrix() Build a genotype matrix matrix(..., nrow, ncol)
sample() Randomly draw values, optionally with replacement and specified probabilities sample(0:2, 300, replace = TRUE, prob = c(0.4, 0.4, 0.2))
rownames/ colnames Get or assign labels for matrix rows and columns rownames(geno) <- paste0("ind_", 1:n_ind)
paste0 Convert inputs to text and concatenate them with no separator paste0("ind",1:30)
colMeans() Column-wise means (used for allele freq.) colMeans(geno) / 2
prcomp() Principal component analysis prcomp(geno, scale. = TRUE)
cor.test() Test correlation between two variables cor.test(x, y)
lm() Fit a linear model lm(y ~ x1 + x2, data = df)
vegan::rda() Redundancy analysis (multivariate GEA) rda(Y ~ x1 + x2, data = df)
vcfR::read.vcfR() Read a real VCF file (beyond this module) read.vcfR("file.vcf")
adegenet::genind Genotype container object (beyond this module) df2genind(...)

Basics of population genetics via simulation

A minimal SNP genotype matrix in R

Genotypes at a biallelic SNP are usually coded as the count of the alternate allele: 0 (homozygous reference), 1 (heterozygous), 2 (homozygous alternate). Let’s simulate a toy dataset — 30 individuals, 10 loci:

set.seed(123)
n_ind  <- 30 # number of individuals
n_loci <- 10 # number of SNP loci

This code creates a simulated genotype matrix where rows are individuals, columns are SNP loci, and each cell contains a diploid genotype coded as 0, 1, or 2.

geno <- matrix(
  sample(0:2,                # sample values from 0, 1 or 2
  n_ind * n_loci,            # no. of draws 30 x 10 or size of the matrix
  replace = TRUE,            # each genotype category can be drawn repeatedly
  prob = c(0.4, 0.4, 0.2)),  # sampling probability for genotypes 0,1 and 2
  nrow = n_ind,              # number of rows - filled with ind IDs
  ncol = n_loci              # number of columns - filled with SNP IDs
)

For a biallelic SNP, the number represents the count of the alternate allele carried by an individual:

Value Genotypes Biological meaning
0 0/0 Homozygous reference; zero alternate alleles
1 0/1 Heterozygous; one alternate allele
2 1/1 Homozygous alternate; two alternate alleles

So, for example, a 1 in row ind_7 and column locus_3 means individual 7 is heterozygous at SNP locus 3.

Set the probabilty of each genotype for the simlutaion run with prob argument of sample() function.

Genotype value Sampling probability
0 0.40
1 0.40
2 0.20
rownames(geno) <- paste0("ind_", 1:n_ind)
colnames(geno) <- paste0("locus_", 1:n_loci)

geno[1:5, 1:5]
      locus_1 locus_2 locus_3 locus_4 locus_5
ind_1       1       2       0       1       0
ind_2       0       2       1       0       1
ind_3       0       0       1       1       1
ind_4       2       0       1       0       1
ind_5       2       1       2       1       1

Allele frequencies

Allele frequency is the proportion of all gene copies at a locus that are a particular allele. \[p + q =1\]

Each genotype value is the count of the alternate allele out of 2, so the mean genotype divided by 2 is the alternate allele frequency for that locus:

alt_freq <- colMeans(geno) / 2
ref_freq <- 1 - alt_freq

data.frame(locus = names(alt_freq),       # col 1 filled with locus names
           alt_freq = round(alt_freq, 3), # col 2 filled with alt freq
           ref_freq = round(ref_freq, 3)) # col 3 is filled with ref freq
            locus alt_freq ref_freq
locus_1   locus_1    0.400    0.600
locus_2   locus_2    0.383    0.617
locus_3   locus_3    0.383    0.617
locus_4   locus_4    0.367    0.633
locus_5   locus_5    0.400    0.600
locus_6   locus_6    0.317    0.683
locus_7   locus_7    0.417    0.583
locus_8   locus_8    0.400    0.600
locus_9   locus_9    0.367    0.633
locus_10 locus_10    0.450    0.550

PART II

Goals

In this exercise, you will simulate genotypes for two populations at one biallelic locus, calculate observed allele and genotype frequencies, compare the populations, and combine them into a single dataset.

Learning objectives

By the end of this section of the module, you should be able to:

  • Use sample() to simulate diploid genotypes (AA, Aa, and aa).
  • Calculate genotype frequencies from observed genotype counts.
  • Calculate allele frequencies (p) and (q) from genotype counts.
  • Compare populations with different allele frequencies and population sizes.
  • Combine population-level data with rbind().
  • Explain why combining structured populations can change apparent genotype frequencies, even when each population was generated under Hardy–Weinberg expectations.

Simulating two populations at one locus

Lets start off by creating two populations with of same size (n=20), but different allele A frequency. This exercise simulates genotypes at one biallelic locus in two populations. You will use sample() to assign genotypes, calculate genotype frequencies with table() and prop.table(), then combine populations with rbind().

For this example, the two alleles are A and a, with three possible diploid genotypes:

Genotype Meaning
AA Two copies of allele A
Aa One copy of A and one copy of a
aa Two copies of allele a

At a biallelic locus:

\[p + q = 1 \] where,
p is the frequency of allele A and;
q is the frequency of allele a.

Under Hardy–Weinberg expectations, genotype probabilities are:

\[AA = p^2\] \[Aa = 2pq\]

\[aa = q^2\]

What is Hardy-Weinberg equilibrium?

The key expectataion under Hardy-Weinberg equilibrium is \(p^2\) for AA, \(2pq\) for Aa, and \(q^2\) for aa, where \(p + q = 1\). In finite populations, observed values vary around thse expectations because of random sampling, variation becomes more obvious at small sample sizes.

The code below uses those probabilities to generate individuals in each population. Because genotypes are randomly sampled, observed frequencies will usually be close to but not identical to the expected frequencies.

set.seed(42)

# Population 1: 20 individuals; allele A frequency p = 0.80
p_1 <- 0.80
q_1 <- 1 - p_1

pop_1 <- data.frame(population = "Pop_1",
                    # sample function for choosing genotypes
                    genotype = sample(c("AA", "Aa", "aa"), # possible genotype values
                      size = 20,                           # no. of individuals to simulate
                      replace = TRUE,                      # genotypes can  occur more than once
                      # p2 + 2pq + q2
                      prob = c(p_1^2, 2 * p_1 * q_1, q_1^2)) # probability of each genotype
                      )

head(pop_1) # peek into the pop_1 dataframe
  population genotype
1      Pop_1       Aa
2      Pop_1       Aa
3      Pop_1       AA
4      Pop_1       Aa
5      Pop_1       Aa
6      Pop_1       AA
# Population 2: 20 individuals; allele A frequency p = 0.30
p_2 <- 0.30
q_2 <- 1 - p_2

pop_2 <- data.frame(population = "Pop_2",
                    genotype = sample(c("AA", "Aa", "aa"),
                      size = 20,
                      replace = TRUE,
                      prob = c(p_2^2, 2 * p_2 * q_2, q_2^2))
                      )

head(pop_2) # peek into the pop_2 dataframe
  population genotype
1      Pop_2       Aa
2      Pop_2       aa
3      Pop_2       AA
4      Pop_2       AA
5      Pop_2       aa
6      Pop_2       Aa
  • sample() randomly assigns each individual one of three possible genotypes: AA, Aa, or aa.
  • replace = TRUE allows genotype categories to occur repeatedly.
  • prob = c(\(p^2\), \(2.p.q\), \(q^2\)) supplies the Hardy–Weinberg genotype probabilities.

For population 1, where p = 0.80 and q = 0.20, the expected genotype frequencies are: \[AA = 0.80^2 = 0.64\] \[Aa = 2 \times 0.80 \times 0.20 = 0.32\]
\[aa = 0.20^2 = 0.04\] Therefore, Population 1 should countain mostly AA individuals.

For Population 2, where p = 0.30 and q = 0.70, the expected genotype frequencies are: \[AA = 0.30^2 = 0.09\] \[Aa = 2 \times 0.30 \times 0.70 = 0.42\]
\[aa = 0.70^2 = 0.49\] Therefore, population2 should contain mostly aa individuals.

Calculate genotype frequencies

Use table() to count each genotype and prop.table() to convert those counts into frequencies.

# Count observed genotypes in each population
geno_count_pop1 <- table(pop_1$genotype)
geno_count_pop2 <- table(pop_2$genotype)


# Convert genotype counts to genotype frequencies
geno_prop_pop1 <- prop.table(table(pop_1$genotype))
geno_prop_pop2 <- prop.table(table(pop_2$genotype))

# Combine individuals from the two populations
pooled_population <- rbind(pop_1, pop_2)

geno_count_pooled <- table(pooled_population$genotype)
geno_prop_pooled <- prop.table(table(pooled_population$genotype))


# Build one comparison table
geno_summary <- data.frame(
  genotype = c("AA", "Aa", "aa"),
  count_pop1 = as.integer(geno_count_pop1[c("AA", "Aa", "aa")]),
  freq_pop1  = as.numeric(geno_prop_pop1[c("AA", "Aa", "aa")]),
  count_pop2 = as.integer(geno_count_pop2[c("AA", "Aa", "aa")]),
  freq_pop2  = as.numeric(geno_prop_pop2[c("AA", "Aa", "aa")]),
  count_pooled = as.integer(geno_count_pooled[c("AA", "Aa", "aa")]),
  freq_pooled  = as.numeric(geno_prop_pooled[c("AA", "Aa", "aa")])
)

geno_summary
  genotype count_pop1 freq_pop1 count_pop2 freq_pop2 count_pooled freq_pooled
1       AA          9      0.45          2       0.1           11       0.275
2       Aa         10      0.50         10       0.5           20       0.500
3       aa          1      0.05          8       0.4            9       0.225
# The genotype frequencies should sum up to 1.
sum(geno_prop_pop1)
[1] 1
sum(geno_prop_pop2)
[1] 1
sum(geno_prop_pooled)
[1] 1
  • rbind() or “row” bind stacks the two population data frames row by row.
  • table() counts each observed genotype.

Calculate allele frequencies

Genotype frequencies describe the proportion of individuals in each genotype class. Allele frequencies instead count all gene copies. Each diploid individual carries two allele copies:

Genotype Number of A alleles Number of a alleles
AA 2 0
Aa 1 1
aa 0 2

\[p_{A} = \frac{2n_{AA} + n_{Aa}}{2N} \]

\[q_{a} = \frac{2n_{aa} + n_{Aa}}{2N} \] Where each AA individuals contributes two A alleles, each aa individual contributes two aa alleles, and each heterozygote contributes one copy of each allele.

To calculate the allele frequency for Population 1:

# Count each genotype in Population 1
counts_1 <- geno_count_pop1

# Number of individuals
N_1 <- nrow(pop_1)

# Count A and a allele copies
n_A_1 <- 2 * counts_1["AA"] + counts_1["Aa"]
n_a_1 <- 2 * counts_1["aa"] + counts_1["Aa"]

# Convert allele counts to allele frequencies
p_A_1 <- n_A_1 / (2 * N_1)
q_a_1 <- n_a_1 / (2 * N_1)

p_A_1
 AA
0.7
q_a_1
 aa
0.3
p_A_1 + q_a_1
AA
 1

Excercises

  • Estimate allele frequencies for Population 2

  • Combine the pooled population data with the Population 1 and Population 2 data

    • What changed for the pooled data? What could be the reason?

  • Try changing the simulations

    • Change one value at a time: change population size, make populations genetically similar, make populations drastically different, change the seed (set.seed(?))

    Testing repo update

PART III

Observed and expected heterozygosity

Observed heterozygosity (\(H_{o}\)): the proportion of individuals with genotype 1 (heterozygous) at a locus.

Expected heterozygosity (\(H_{e}\)): what you’d expect under Hardy-Weinberg equilibrium, given the allele frequencies: \(H_{e} = 2pq\), where p and q are the reference and alternate allele frequencies.

Concept review: What is Hardy-Weinberg equilibrium?

Ho <- colMeans(geno == 1)
He <- 2 * ref_freq * alt_freq

het_table <- data.frame(locus = names(Ho),
                        Ho = round(Ho, 3),
                        He = round(He, 3),
                        diff = round(Ho - He, 3))
het_table
            locus    Ho    He   diff
locus_1   locus_1 0.267 0.480 -0.213
locus_2   locus_2 0.500 0.473  0.027
locus_3   locus_3 0.367 0.473 -0.106
locus_4   locus_4 0.333 0.464 -0.131
locus_5   locus_5 0.467 0.480 -0.013
locus_6   locus_6 0.433 0.433  0.001
locus_7   locus_7 0.367 0.486 -0.119
locus_8   locus_8 0.400 0.480 -0.080
locus_9   locus_9 0.333 0.464 -0.131
locus_10 locus_10 0.567 0.495  0.072

If Ho is consistently lower than He across loci, that’s a signature of inbreeding or population substructure — the same underlying idea behind the Family_Homozygosity and Population_Homozygosity columns already computed in the real world dataset used in the previous modules.

PCA for population structure

On the simulated matrix:

pca_sim <- prcomp(geno, scale. = TRUE)
plot(pca_sim$x[, 1], pca_sim$x[, 2],
     xlab = "PC1", ylab = "PC2", main = "Simulated genotype PCA")

Now look at the real PC1/PC2 already computed for the red-spruce trees (from actual genetic markers, not simulated):

traits <- read.table("data/raw/red_spruce_fitness_traits.txt", header = TRUE, sep = "\t")
traits$Region <- factor(traits$Region)
plot(traits$PC1, traits$PC2,
     col = as.integer(traits$Region), pch = 19,
     xlab = "PC1", ylab = "PC2", main = "Genetic PCA colored by region")
legend("topright", legend = levels(traits$Region),
       col = 1:nlevels(traits$Region), pch = 19)

In population genetics, PC1/PC2 from a genetic marker PCA usually capture the strongest axes of population structure — often correlated with geography (isolation by distance) or major environmental gradients.

Roadmap beyond this module

When you’re ready to work with real genotype data instead of pre-computed summaries:

  • vcfR::read.vcfR() reads a VCF file into R
  • adegenet::df2genind() / vcfR::vcfR2genind() convert genotypes into population-genetics-aware objects with built-in allele-frequency, heterozygosity, and Fst functions
  • LEA (Bioconductor) and vegan::rda() scale the GEA approach above to genome-wide SNP data

None of this is required for this module’s exercises — it’s here so you know where basics you learn connects to your actual genomic analysis pipelines.

Wrap Up

Idea check

Answer these before the practical exercises.

  1. What does an alternate allele frequency of 0.3 at a locus mean biologically?
  2. Why can observed heterozygosity (Ho) be lower than expected heterozygosity (He) in a real population?
  3. What do you think Population_Homozygosity is measuring, and how would you expect it to relate to Genetic_Diversity — positively or negatively?
  4. In a PCA built from genetic markers, what do PC1 and PC2 typically represent in a population-genetics context?
  5. Why test cor.test(Genetic_Diversity, Elevation) rather than just assuming a relationship exists because both vary by population?
  6. What is the conceptual difference between running a separate lm() for each genetic variable versus running one rda() with all of them as a response matrix?

Practical exercises

  1. Build the simulated genotype matrix (30 individuals × 10 loci) exactly as shown, and compute the alternate allele frequency for every locus.
  2. Compute observed and expected heterozygosity for each locus and identify which locus shows the largest Ho − He gap.
  3. Run prcomp() on the simulated genotype matrix and plot PC1 vs. PC2.
  4. Load the real red-spruce dataset and plot the real PC1 vs. PC2, colored by Region. Does the pattern look like discrete clusters or a continuous gradient?
  5. Run cor.test() between Population_Homozygosity and Elevation, and separately between Genetic_Diversity and Latitude. Report the correlation coefficient, p-value, and a one-sentence interpretation for each.
  6. Fit lm(Genetic_Load ~ Elevation + Latitude, data = traits) and interpret the two coefficients — which predictor has a stronger association, and in which direction?
  7. Stretch exercise: run the vegan::rda() example above using Genetic_Diversity, Genetic_Load, PC1, PC2 as responses and Elevation, Latitude as predictors. Produce the ordination biplot and describe what you see in 2–3 sentences.
  8. Save every summary table (allele frequencies, heterozygosity table, correlation results) and every plot into results/.

Homework

Build src/02_pop_genetics_intro.R, combining the simulated-data fundamentals with a real-data GEA-style analysis.

Requirements:

  • Part A (fundamentals): allele frequency and Ho/He table for the simulated genotype matrix, plus the PCA plot.
  • Part B (applied): using the real dataset, test associations between at least two genetic-parameter columns (e.g., Population_Homozygosity, Genetic_Diversity, Genetic_Load) and at least two environmental predictors (Elevation, Latitude, Longitude), using correlation and/or lm().
  • A written interpretation (half a page, as comments or a results/README.md) answering: Do the genetic parameters show a spatial pattern with latitude or elevation? What ecological or demographic process might explain this (e.g., isolation by distance, local adaptation, drift in small/marginal populations)?
  • Bonus (optional): complete the vegan::rda() ordination and include the biplot with a short interpretation of which environmental axis drives more separation among genetic variables.

Submission format: src/02_pop_genetics_intro.R, all generated outputs in results/, and the written interpretation.
